co gas detector

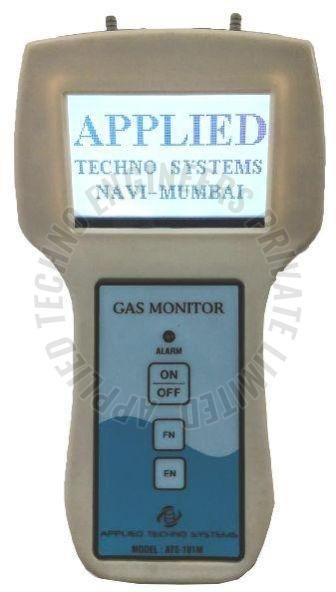

PORTABLE GAS MONITOR/ANALYZER MODEL ATS-101M

model ATS-101M is Portable Single/Dubel Gas Detectors are capable

of detecting Oxygen, Toxic, and Combustible gases making them

ideal for use in various environments. Compact, Light Weight

Intelligent Unit with Application Specific Sensors Sensitive to

PPB / PPM or % levels of Gases & Vapors.

The advanced Micro controller technology employed makes these ALERT METERS highly dependable,

reliable and accurate. The complete automatic operation and calibration feature leaves no

scope for user error.

These Compact, self contained and intrinsically safe designed instrument housed in a weather

proof high impact plastic case are powered with a rechargeable Lithium 3.7V Dc battery.

On switching 'ON', the instrument goes thorough its complete self integrity check, and

displays factory set Warn and Alarm values before indicating ‘Ready’ for monitoring.

While in Operation, the instrument monitors the work place continuously giving the latest

update concentration of designated Gas through diffusion sampling. Suction sampling is

possible with an optional manual or battery operated pump and adaptor. The poison resistant

Pellister or long life, integrally mounted electrochemical Sensors with inbuilt cross

interference filters are gas specific. Optionally the sensors can be mounted on an extension

cable for monitoring inaccessible locations before entry.

The instruments emits an audible beep every 15 secs that provides confidence to the user that

he is well protected. Audio, Visual also Warn and Alarms protect him from hazardous

situations.

The Warn and Alarm Values are factory set. Low Battery Alarm alerts the user to replace or

recharge the Battery. Special features like maximum exposed concentration and TWA readings

can be incorporated

Complete Automatic Operation.

128X64 Graphics Display

Continuous Diffusion / Suction Sampling

Confidence Beep every 15 seconds.

Complete self Integrity check on start

Automatic Calibration.

Display of WARN & ALARM

Low battery Alarm.

FEATURES

Sample Type: Diffussion

(Without auto suction pump)

Sample Type: Auto suction

(with inbuilt auto suction pump)

Applied Techno Engineers Pvt. Ltd.

An ISO 9001:2015 Company

Process Monitoring Instruments

FEATURES

Overall Ranges PPB / PPM / % V/V/% LEL

Sampling Method Diffusion (D) or Suction (S)

Principle Specific to Application (EC, NDIR, Solid State, Catalytic,PID)

Sensor Life 2 - 5 years

Measurement Continuous.

Display 128 X 64 graphics Display (Reading, Alarm Icon & low battery Condition)

Resolution 0.01, 0.1 or 1 PPM, %V/V, % LEL as applicable.

Accuracy +/- 2 % & 0.5% for oxygen.

Repeatability +/- 2 %.

Response Time < 30 seconds at 95 % variation.

Alarms Low & HI Visual and Audible (User Customized))

Humidity 0 - 9 5 % R H

Power Supply 3.7 V DC Long Life Lithium Rechargeable Battery

Battery Life 6-8 hours.

Housing & IP High Impact Plastic. (ABS), Ingress Protection:IP68

Size & Weight 115(H) X180(L) X 60(D); 300 GM.

Temperature Range -30 to 55 Deg. C.
