Gas Sensor

Gas Detection Systems Model ATS-109TD

The ATS-109TD Sensor/Transmitter operates on 24 VDC power and features LED alarm indicators, 4-20 mA output and optional alarm relay board. This sensor/transmitter can be connected to various applied controllers or computer-based instrumentation, such as PLC or similar instrumentation

Applications :

• Environmental Monitoring
• Area Monitoring
• Pulp & Paper
• Leak Detection & Monitoring
• Chemical Plants
• Refineries/Petrochemical
• Hazardous Area
• Water/West water Treatment
• Fire Services
• Mines

Features :

• Detection of combustible, toxic Gases and Oxygen
• Non-intrusive calibration
• Smart sensors
• Programmable relays
• 2-wire, 3-wire, ModBus
• Flame proof Junction Box
• Available in stainless steel
• Available in wireless version
• Flame proof Junction Box Approval CCOE & CMRI

Applications :

• Environmental Monitoring
• Area Monitoring
• Pulp Paper
• Leak Detection Monitoring
• Chemical Plants
• Refineries/Petrochemical
• Hazardous Area
• Water/West water Treatment
• Fire Services
• Mines

Feature :

• Detection of combustible, toxic Gases and Oxygen
• Non-intrusive calibration
• Smart sensors
• RED LED Dispaly
• Programmable relays
• 2-wire, 3-wire, ModBus
• Flame proof Junction Box
• Available in stainless steel
• Available in wireless version
• Flame proof Junction Box Approval CCOE CMRI

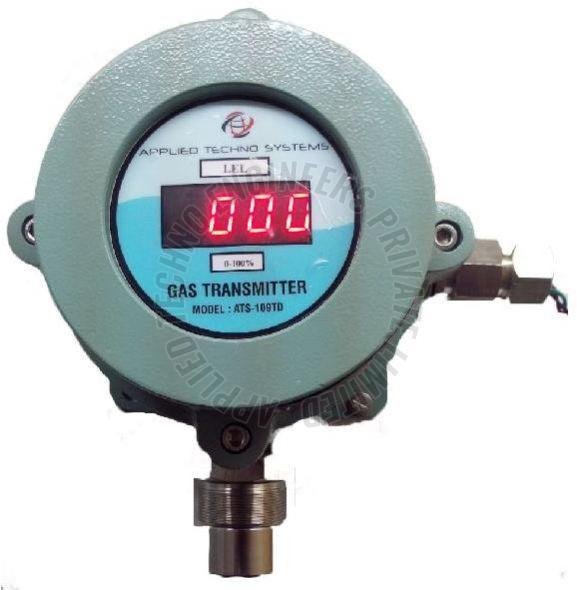

GAS MONITOR ( MODEL ATS 109TD EXP. PROOF )

FOR HYDROCARBONS/EXPLOSIVE, TOXIC GASES & OXYGEN.

H2,O2,CO,CO2,NO,NO2,SO2,H2S,NH3,CL2,E.O.,BR2,F2,HCL,HF,HCN

LPG/CNG,HYDROCARBONS,VOC,ORGANIC SOLVENTS/VAPOURS.

Fast and accurate response.

Flexibility to fit your application needs

··

· Compatible for Marine Applicaions

Integral or Remote mounting Sensor.

Interfaces with Industry Standard Transmitters. ·

·

· Ingress Protection IP-65

Applied Field proven gas Monitor/Transmitters continuously monitors for dangerous

concentrations of gases. The linearize 4-20 mA transmission can interface directly with any

receiving instrument starting from indicators, controllers to large control systems.

Provision for directly connection of buzzer/Hooter for Alarm through Relay.

The standard system consist of a compact electronic module housed in a Weatherproof or

explosion proof Metallic or Polyester box with an application specific sensor. This state

of the art transmitter is carefully designed with and manufactured with Industrial grade

Components for reliability accuracy and long life. It is certified for use in hazardous

areas Class 1, Division 1, Group B, C & D. (IIA, IIB or IIC), IP 65 apart from being

available in weatherproof Enclosure Transmitters are equipped with micro controller and

are heavily featured with self diagnostics, Auto calibration (in case of toxic, Oxygen,

combustible gases only) through embedded Software, can be done at site. RS 232/485 output

with baud rates of 2400 bps is available as an options.

With Display Without Display

CSIR-CIMFR

Approved

DESCRIPTION

SPECIAL FEATURES

Applied Techno Engineers Pvt. Ltd.

An ISO 9001:2015 Company

Process Monitoring Instruments

Gases Oxygen Hydrocarbon, Hydrogen

%

LEL PPM %

Range 0 - 25/30/100 0-100% 0-1000/10000 0-100

D etection Principle Electrochemica l Catalytic Semiconductor Thermal

Combustion Electrochemica l Conductivity

Gases H2S CO So2 NO2 2 Br2,F2 HCL HCN NO NH3 E.O

Range PPM PPM PPM PPM PPM PPM PPM PPM PPM PPM

Max 2000 4000/10% 200 50 2000 200 200 1000 100/500 100

Min 0 0 0 0 0 0 0 0 0 0

De t e c t i o n P r i n c i p l e Application Based Electrochemical , Catalytic, Semiconductor or PID

Gas Monitor, Gas Analyzer, Transmitters, Humidity Moisture Dew Point Analyzer, Dew Point

Transmitters, Sampling Systems & Dust Particulate Monitor

Response Time

< 30 seconds

Zero drift

0.2% FS

Accuracy

+/- 1% FS (For Oxygen 0.5% FS)

Operating Voltage

24 Volt DC or 230VAC

Operating Temperature -20 to +60 Deg. C

Terminations

PCB mounted terminal blocks to accept 1.5mm wires

Display

7 Seg. LED Display

Output

4-20 mA Linear, Relay for diff levels /0 - 1Volts DC (V)/RS232/RS485

2wire (Dry Electrochemical sensor based, Dew point, Humidity, Temp,

Moisture, Vapour Pressure) , 3Wire Combustible, VOC’s, Toxic Gases

Power Consumption

2 wire: 0.5 W max. / 3 wire: 3.6 W max.

Max. Load

600 Ohms

Mounting

Wall mounting, 2" Pipe (U clamps will be provided)

Note : Specifications and Features will vary with application. The above are established and validated during design, but are not to be construed as test criteria

for every product. Due to applied commitment to research, design and product improvement, specifications are subject to change without notice.

The Minimum & Maximum ranges & the Gases Indicated are Intended as a Guide for full scale detection.

VOC

PPM

100/1000

0

Housing Cast Aluminum Alloy (IP65)
