Monitoring System

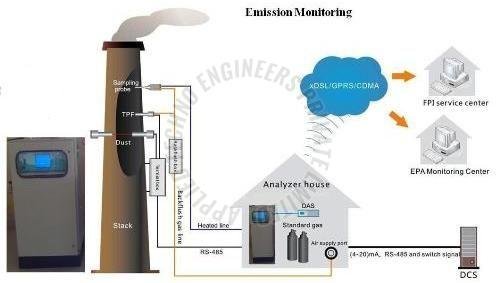

Online Continuous Emission Monitoring Systems (OCEMS)

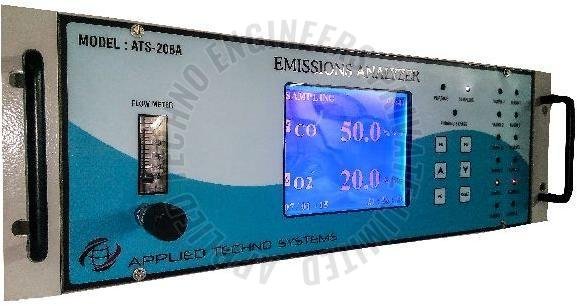

Make: Applied Techno Systems

Model: ATS 208A

Approval Certificate : TUV

With Remote calibration facility

Applied Techno Systems is Inginiuos manufacturer of OCEMS Model ATS 208A which includes Gas ANalyser, Gas Sampling Systems, Tempreture , flow & Opacity dust Monitoring Systems with real time data transmission Systems to CPCB & SPCB.
Applied Continuous Emission Montoring CEMS fullfill the environmental regulatory compliance of various industrieal sources of air pollutant.

• Microcontroller based embedded intelligent instruments
• Continuous Monitoring of CO2 ,CH4, CO, O2, SO2, NOX (NO NO2), H2, H2S, N2
• Duel wavelength Infra red sensor for Long terms accuracy and stability
• Long Life Electrochemical sensor
• Six Gas Analysis in Single Analyser
• Multi Parameter Single 320 X 240 Graphics LCD Display
• Self diagnostic & Self integrity check
• RS 232/RS 485 and USB Computer Interface
• Excellent low level capability for NOX and SO2 Measurement
• For most of the application sample gas is cooled and dried inside the sampling conditioning systems to avoid the Heated Sample Line.
• Analog 4-20mA output for each gas
• Software solutions for Gas Analysis
• Web Based Real time data transfer

FEATURES :

• Innovative Dynamic Detection Principle (DDP) measurement technique
• Immune to gradual reductions in absolute intensity of the light signal soless susceptible to drift
• Measurement reading as mg/m3 (when calibrated against standard reference measurements)
• Rugged 316 stainless steel constructionChoice of interface options enabling easy integration
• Free utility software for PC based set-up, control and data logging
• Optional Operator Interface with different mounting configurations

BENEFITS :

• Significantly less susceptible to drift than standard opacity monitors
• Better accuracy over shorter path lengths, i.e. smaller duct diameter
• Simple to install, commission and operate with an excellent reliability record
• Rugged design with no moving parts so low maintenance
• Latched head and lid design to enable ease of access for installation and maintenance THE TECHNOLOGY The DSL-340 Dust Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in exhaust gas passing through a duct, stack or flue. The DSL-340 uses the innovative Dynamic Detection Principle (DDP) which measures fluctuations in the intensity of a light beam, using a folded beam Transceiver / Reflector arrangement. Increased dust or particulate density in the stack causes the amplitude of these fluctuations to increase. When calibrated against standard reference measurements, the amplitude of this signal relates directly to the dust concentration in the stack and this can be presente das a reading in mg/m³.APPLICATIONS, Cement works
• Steel plants, Air filtration processes such as electrostatic precipitators
• Other industrial applications with larger particle size and relatively high dust loading.

• Microcontroller based embedded intelligent instruments

• Continuous Monitoring of CO2 ,CH4, CO, O2, SO2, NOX (NO NO2), H2, H2S, N2
• Duel wavelength Infra red sensor for Long terms accuracy and stability
• Long Life Electrochemical sensor
• Six Gas Analysis in Single Analyser
• Multi Parameter Single 320 X 240 Graphics LCD Display

• Self diagnostic & Self integrity check
• RS 232/RS 485 and USB Computer Interface
• Excellent low level capability for NOX and SO2 Measurement
• For most of the application sample gas is cooled and dried inside the sampling conditioning systems to avoid the Heated Sample Line.
• Analog 4-20mA output for each gas
• Software solutions for Gas Analysis
• Web Based Real time data transfer with GSM/GPRS Technology

Features :

• Easy to use
• Reliable operation
• Precisely designed

Other Details :

• A Dust particulate monitor is a device that is mounted in the discharge stack of a dust collector and continuously monitors the amount of particulate discharge. The particulate monitor uses a technology known as Triboelectric or Triboelectricity.
• When two different materials come in contact, it is likely that one will leave with more electrons than it started with and the other will leave with less, this is called Triboelectric Effect. The interaction between the probe and particles produces a charge transfer within the probe. The charge is then converted to an output signal.
• The advanced electronics of the Monitor detect this signal and present it to the operator via a modulating Graphical display.

FEATURES :

• Innovative Dynamic Detection Principle (DDP) measurement techniqueImmune to gradual reductions in absolute intensity of the light signal soless susceptible to drift
• Measurement reading as mg/m3 (when calibrated against standard reference measurements)
• Rugged 316 stainless steel construction
• Choice of interface options enabling easy integration
• Free utility software for PC based set-up, control and data logging
• Optional Operator Interface with different mounting configurations

BENEFITS :

• Significantly less susceptible to drift than standard opacity monitors
• Better accuracy over shorter path lengths, i.e. smaller duct diameter
• Simple to install, commission and operate with an excellent reliability record
• Rugged design with no moving parts so low maintenance
• Latched head and lid design to enable ease of access for installation and maintenance

THE TECHNOLOGY The DSL-340 Dust Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in exhaustgas passing through a duct, stack or flue. The DSL-340 uses the innovative Dynamic Detection Principle (DDP) which measuresfluctuations in the intensity of a light beam, using a folded beam Transceiver / Reflector arrangement. Increased dust or particulate density in the stack causes the amplitude of these fluctuations to increase. When calibrated against standard reference measurements, the amplitude of this signal relates directly to the dust concentration in the stack and this can be presentedas a reading in mg/m³.

APPLICATIONS :

• Cement works
• Steel plants
• Air filtration processes such as electrostatic precipitators
• Other industrial applications with larger particle size and relatively high dust loading.
