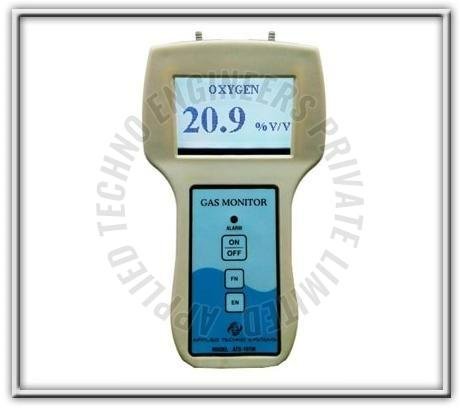

Portable Gas Detector


Portable Gas Detector

Specifications

Principle Electrochemical, Solid State Semiconductor and PID (Photo Ionization)
Range %V/V, %LEL, PPM, PPB or mg/M3
Resolution 0.1 Unit or 1 Unit (Application based)
Sampling Method Diffusion, Auto Suction or Direct Plug In
Display 128 X 64 Graphics LCD
Alarm Two Levels Low & High, Visual and Audible
Power Source Built in Lithium Rechargeable battery
Accuracy +/2%
Response Time <5 Second
Flow Rate 2.84 L/M
Data Storage 1000 or 10000
Sensor Life 2-3 Years
Operating Time 6 – 8 hours
Environmental --
Temperature Temperature
Humidity < 85%RH
Atmosphere Pressure 86- 106Kpa
Housing High Impact Plastic
Dimension in mm 115 (W) X 180 (H) X 60(D)
Weight 0.6 KG
Warranty One Year

Additional Information

Product Code NO. ATS-101M

Portable Single Gas Detectors
Model ATS-101M is Portable Single Gas Detectors are capable of detecting Oxygen, Toxic, and Combustible gases making them ideal for use in various environments.

Portable Multi Gas Detector
Model ATS-103M is Portable Multi Gas Detector are capable up to Five Gases in One Instruments and detects all Toxic, Explosive and VOC (Volatile organic Compound) Vapour make them ideal use in variety of applications

  • Suitable for all Toxic Explosive & Oxygen Gases
  • Microcontroller based embedded intelligent instruments
  • 128 x 64 Graphics LCD Display
  • Diffusion or Auto Suction Sampling Mode
  • Long Life Rechargeable Li-Ione Battery
  • Data Logger with RS 232 and USB Computer Interface
  • On Site Printing


Applications :

  • Personal Monitoring
  • Confined space entry
  • Pulp & Paper
  • Chemical Plants
  • Refineries/Petrochemical
  • Hazardous Area
  • Water/West water Treatment
  • Fire Services Mines
